Upgraded version of the original Vantage Pro system
The Vantage Pro2 is now enhanced with a bubble level on the rain
collector to help make installation easier and more accurate, an
improved anemometer base for easier cable routing and to avoid
damaging the cable, stronger wind cups and factory calibrated wind
direction. This cabled Vantage Pro2 weather station is an upgraded
version of the original Vantage Pro system. It includes 100 feet of
cable running from the integrated sensor suite to the console.

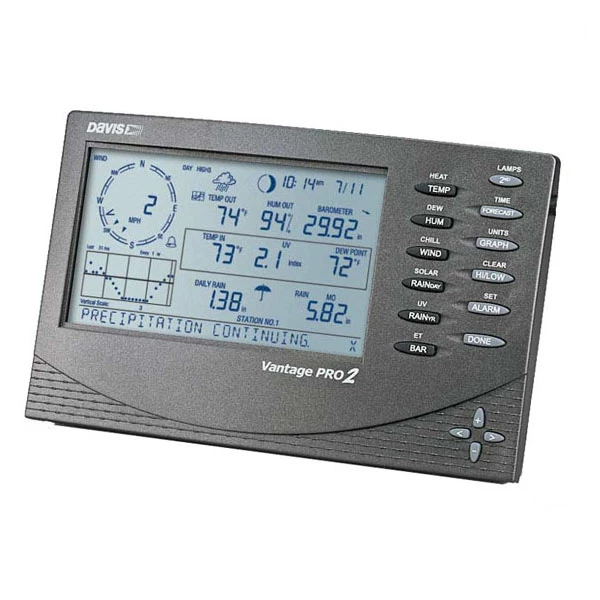

The system consists of a console unit and an innovative integrated
sensor suite that includes a rain collector with self-emptying
bucket, temperature and humidity sensors and an anemometer. The
sensor suite is housed inside a standard radiation shield,
protecting the sensors against solar radiation and additional
sources of reflected and/or radiated heat. The passive shielding
reduces outside solar radiation temperature errors.
The cabled weather station uses a 4- conducter, 26AWG cable. The
anemometer is detachable from the sensor suite for increased
flexibility and 40 feet of additional cable is included for the
relocation process. The cabled Vantage Pro2 weather station
includes a solar-powered sensor array and has features such as
on-screen graphing, forecasting using easy-to-read icons (sunny,
cloudy, rain, snow), barometric pressure readings, inside
temperature, dew point, humidity information, time and date, and
much more!
Note: Davis continues to calibrate the wind direction
to be accurate when the anemometer arm is pointed true north. If
you need to point the anemometer arm in another direction you will
need to re- calibrate the wind direction using the Vantage Pro2
console. Console powered by AC adapter with 3 “C” backup batteries
(not included)
Davis Vantage PRO2 Weather Station Wired Version
Features:
- Provides accurate weather data in a sophisticated yet
easy-to-read format - Stylish LCD console provides continual updated weather
information - Cabled weather station is easy to install
- Weather information includes inside/outside temperature,
rainfall amount, humidity levels, wind speed, wind direction and
wind chill factor - Additional weather information includes barometric pressure,
heat index, dew point, time of sunrise and sunset, forecasting
icons and much more - Rain collector is self-emptying tipping bucket reading rainfall
in 0.01-inch increments - Bubble level mounted on the base inside the rain collector cone
makes installation easier and more accurate - Standard radiation shield protects sensors from harmful
reflected or radiated heat - Integrated sensor suite includes detachable anemometer with 40
feet of additional cable - Sensor suite is powered by solar energy with backup battery
life span of 1 to 2 years - Weather station includes 100 feet of 4- conducter 26AWG cable
plus extra anemometer cable - Anemometer base has been redesigned for easier cable routing to
avoid damaging the cable - Enhanced stronger wind cups are wind-tunnel tested to 180
mph - All mounting hardware is included
Davis Vantage PRO2 Weather Station Wired Version Owner’s Manual
